BC durable steel skate wheel conveyor covered with polyurethane,sliding roller track with 40mmdia.9mm width wheel

Product Description:

Production Description
BW-4009PU-1000L-50P wheel conveyor
Wheel Conveyors or Skate Wheel Conveyors are an alternative version of non-powered roller conveyors.
In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various
wheel patterns to configure conveyor lanes, either in horizontal push applications or on slight decline
angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-4009PU-1000L-50P
Roller Material	carbon steel

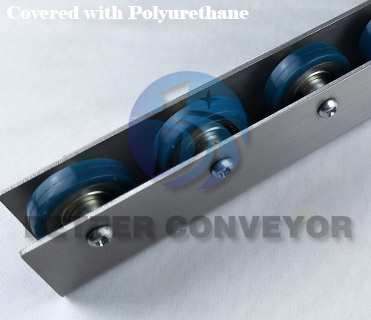

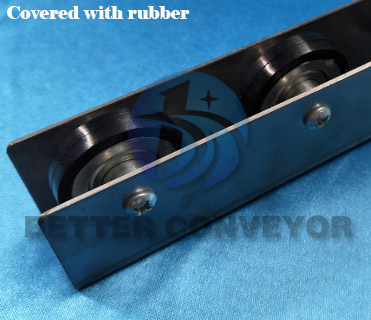

Roller surface treatment	covered wtih Polyurethane or rubber

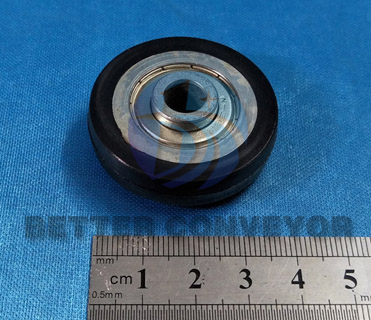

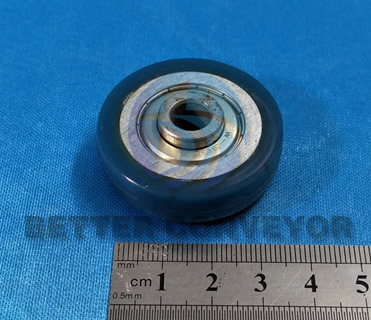

Roller Size	OD40mmW9mmd6mm
Frame Material	carbon steel or stainless steel
Frame surface treatment	powder painting
Frame Size	W27.8mm*H53mm
Thread	Pan Head
Pitch	50mm/60mm/70mm
Load capacity	35kg/pcs

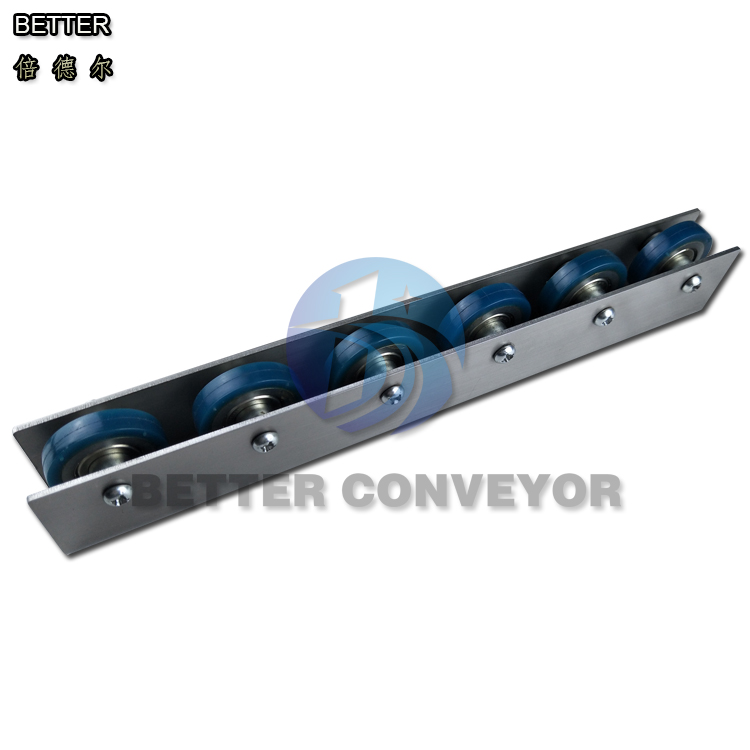

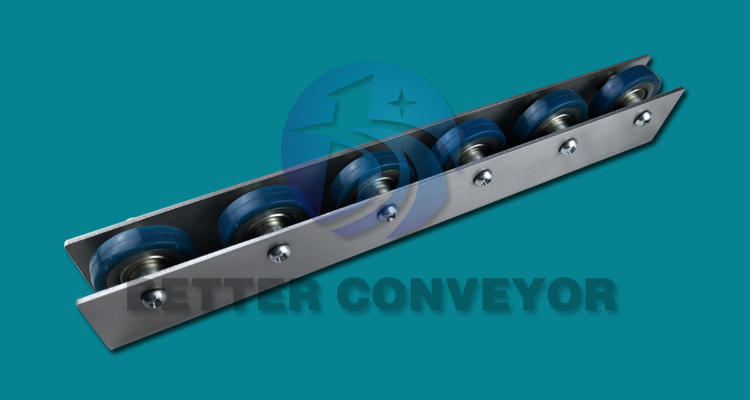

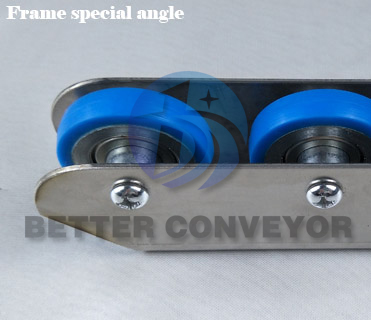

Products Show

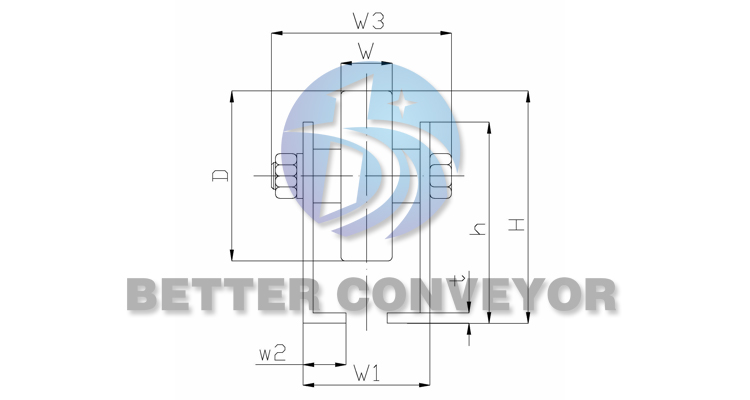

Model	BW-4009PU-1000L-50P	Roller material	carbon steel
Roller diameter(D)	40mm	Frame material	carbon steel or stainless steel
Roller width(W)	9mm	Roller pitch	50mm/60mm/70mm
Frame width(W1)	27.8mm	Load capacity	35KG/pcs
Frame width(W2)	10mm	Conveyor length	less than 2m
Frame high(H1)	45mm	Special design	Yse
Frame high(H)	53mm	Warranty	12month
Bending thickness(t)	2mm

Packing & Delivery

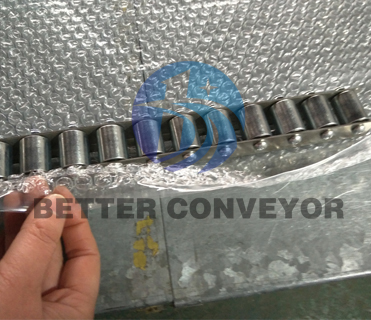

wooden case with bubble roll
