BC pallet roller conveyor with 38mm dia.1.2mm wall tubes 50mm pitch conveyor line for engine factory

Product Description:

Products Description

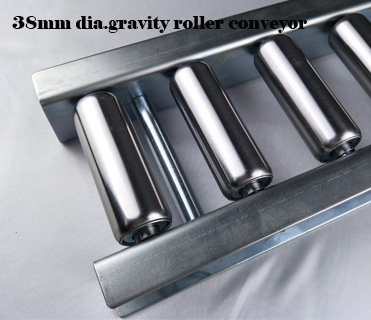

BC pallet roller conveyor with 38mm dia.1.2mm wall tubes 50mm pitch
Non-powered roller conveyors or Gravity Conveyors are the most economical and common method of
conveying unit loads. The conveyors are typically mounted on a slight decline angle, therefore using
gravity to assist product movement, especially for long distances. They can also be used in applications
where the conveyor is level and operators can push the product along to its final destination, allowing
for multiple workstations, if needed.

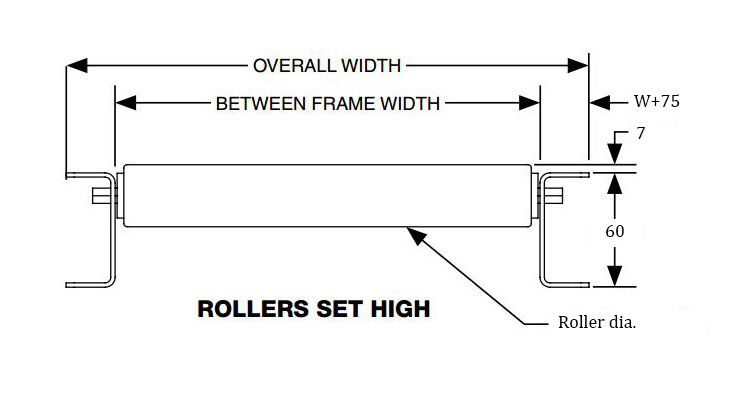

BR - 3812 - W100 - 1000L - 50P
A B C D E

A：Roller Conveyor
B：Roller dia.=38mm, thickness=1.2mm
C：Width of Tubes=100mm
D：Conveyor length=1000mm
E：Pitch=50mm

Application:
• Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes
• Non-Contact Accumulation
• Unitized
• Pallet loads when bottom boards are perpendicular to the rollers
• Pallet loads when bottom boards are parallel to the rollers
• Side loading/unloading
• Accumulation of loads

Product Name	BR-3812-W100-1000L-50P
Roller Material	carbon steel or stainless steel
Roller surface treatment	standard is galvanized optional chromed
Roller Construction	Round tube, 38mm Diameter, 1.2mm wall tubes
Tube width	100~1000mm
Bearing	Standard Non-precision. Optional Semi-precision and Precision bearings

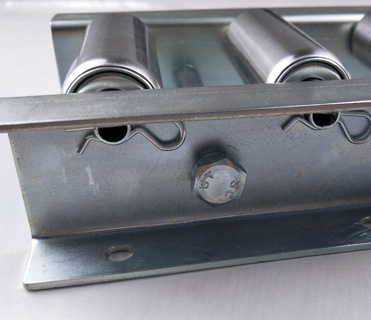

Axle retention	Standard is Spring staked one side.
Frame material	carbon steel or stainless steel
Frame surface treatment	powder painting standard is green
Conveyor length	1000/1500/2000/3000mm
Couplings	Butt type for bolting sections together
Supports	Standard is floor supports with ±50mm adjustable legs

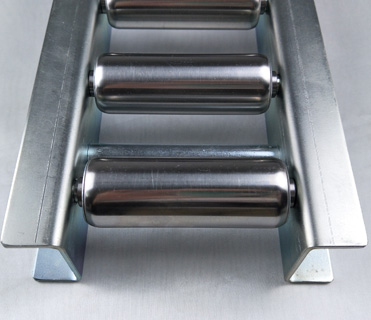

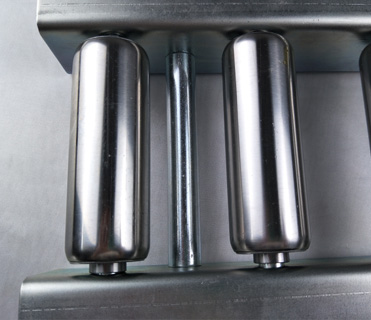

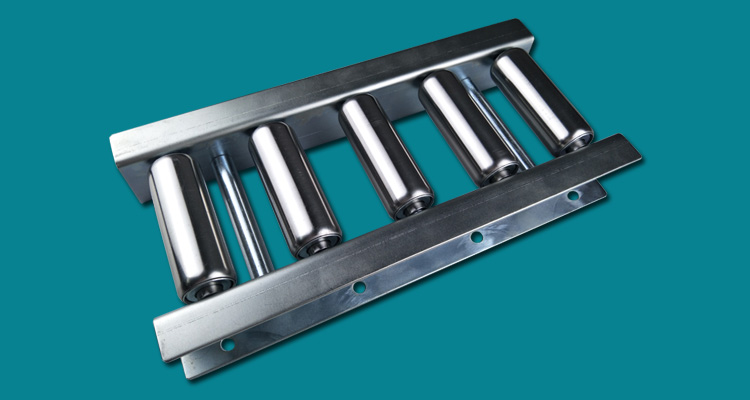

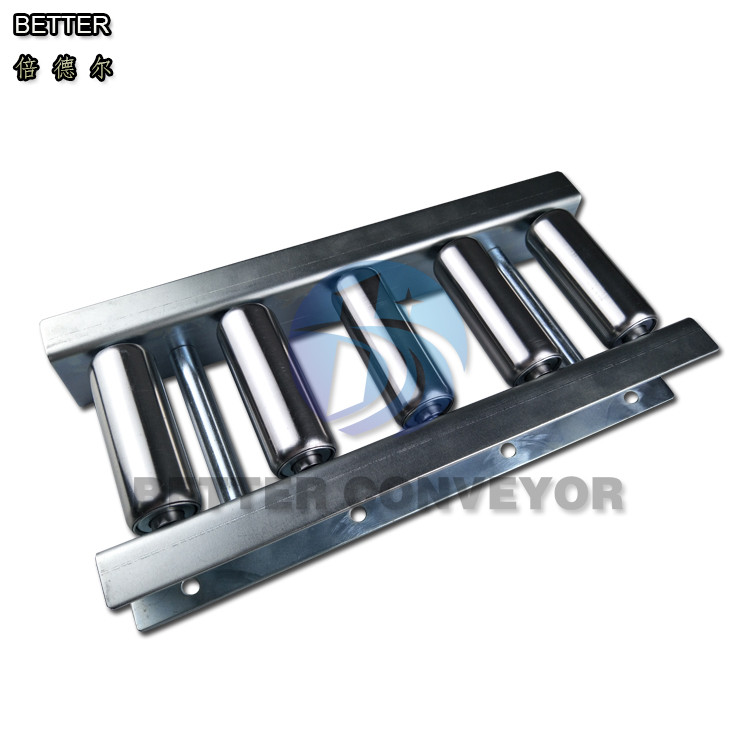

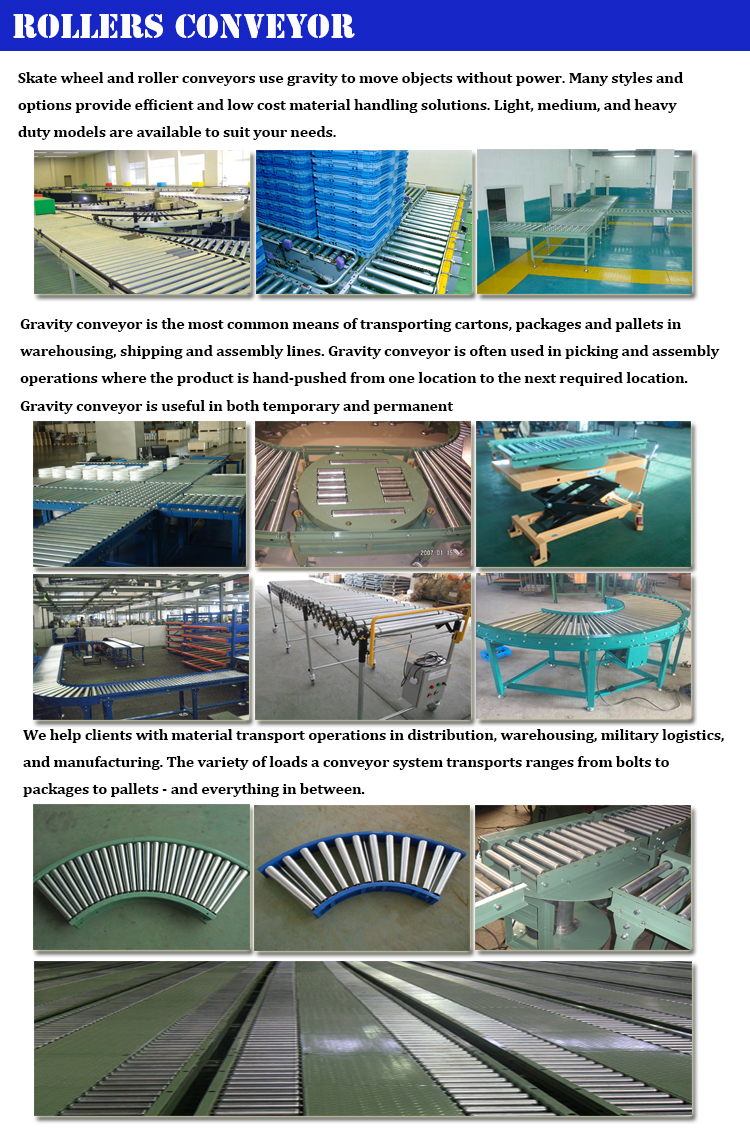

Products Show

Package and Delivery
