BL-34JI Small joint Light belt conveyor
Product Description:
Type :BL-34JI
Name: Light&Medium load belt conveyor
1.belt conveyor frame: Al alloy section 34mm
2.belt width:100mm~500mm
3.belt material: Industrial PVC belt,PU belt,white food grade belt....
4.JI model belt conveyor is suitable for short distance movement
5.constant speed and variable speed designed by customer
6.sharing load capacity:max 30kg
BL-34JI-100W-300L-H3-A25
1.BL-34JI means GI model with middle guide
2.100W means effective belt width
3.300L means belt conveyor working length
4.H3 means working speed (constant speed or variable speed)
5.A25 means conveyor power
>>How to choose suitable belt conveyor model
1.working objects'dimension and weight?(important,please tell me,then we could give some advice)
>>BL-34JI belt conveyor specification

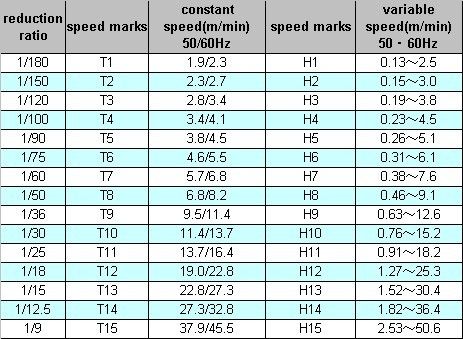

>>belt working speed be chosen
Name: Light&Medium load belt conveyor
1.belt conveyor frame: Al alloy section 34mm
2.belt width:100mm~500mm
3.belt material: Industrial PVC belt,PU belt,white food grade belt....
4.JI model belt conveyor is suitable for short distance movement
5.constant speed and variable speed designed by customer
6.sharing load capacity:max 30kg
BL-34JI-100W-300L-H3-A25
1.BL-34JI means GI model with middle guide
2.100W means effective belt width
3.300L means belt conveyor working length
4.H3 means working speed (constant speed or variable speed)
5.A25 means conveyor power
>>How to choose suitable belt conveyor model
1.working objects'dimension and weight?(important,please tell me,then we could give some advice)
>>BL-34JI belt conveyor specification
>>belt working speed be chosen
