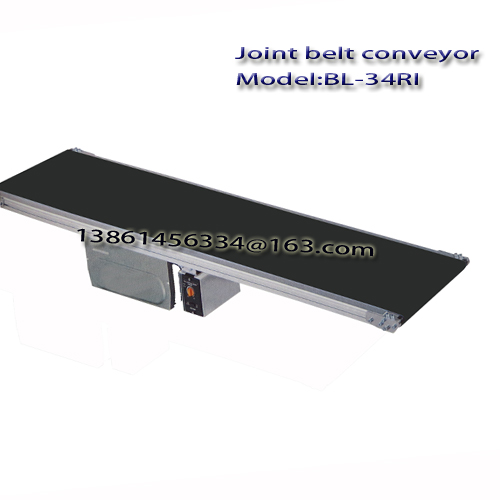

BL-34RI Joint belt conveyor
Product Description:
Type :BL-34RI
Name: Light&Medium load belt conveyor
1.belt conveyor frame: Al alloy section 34mm
2.belt width:100mm~500mm
3.belt material: Industrial PVC belt,PU belt,white food grade belt....
4.R7 front roller,convenient to joint with other conveyors
5.constant speed and variable speed designed by customer
6.sharing load capacity:max 30kg
BL-34RI-350W-3500L-T3-A60
1.BL-34RI means belt conveyor be suitable for joint conveyor
2.350W means effective belt width
3.3500L means belt conveyor working length
4.H3 means working speed (constant speed or variable speed)
5.A60 means conveyor power
>>How to choose suitable belt conveyor model
1.working objects'dimension and weight?(important,please tell me,then we could give some advice)
>>BL-34RI belt conveyor specification

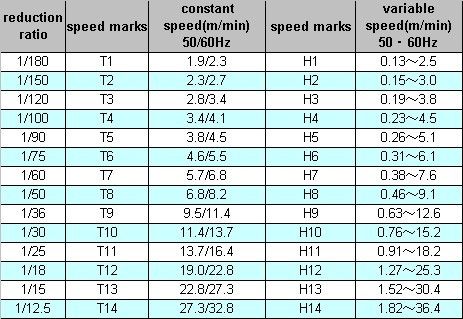

>>belt working speed be chosen
Name: Light&Medium load belt conveyor
1.belt conveyor frame: Al alloy section 34mm
2.belt width:100mm~500mm
3.belt material: Industrial PVC belt,PU belt,white food grade belt....
4.R7 front roller,convenient to joint with other conveyors
5.constant speed and variable speed designed by customer
6.sharing load capacity:max 30kg
BL-34RI-350W-3500L-T3-A60
1.BL-34RI means belt conveyor be suitable for joint conveyor
2.350W means effective belt width
3.3500L means belt conveyor working length
4.H3 means working speed (constant speed or variable speed)
5.A60 means conveyor power
>>How to choose suitable belt conveyor model
1.working objects'dimension and weight?(important,please tell me,then we could give some advice)
>>BL-34RI belt conveyor specification
>>belt working speed be chosen
