BKR-574010S Φ57 Single sprocket roller

Product Description:

Name:single sprocket roller conveyor

Model: BKR-574010S

Sprocket roller conveyor is called chain driving roller conveyor,sprocket rollers are driven by metal chain,and the motor is the major driving unit.

This kind of conveyor is used for transporting heavy duty goods,save man's power.

Single sproket is different from double sprocket, double sprocket roller conveyor could be stronger.

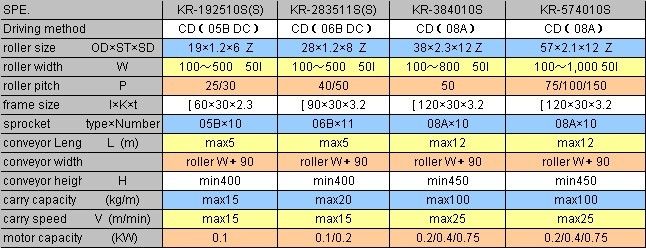

>>Technical Specification

1.roller size: 57OD*2.1t*12d

2.conveyor frame:[120*30*3.2t

3.sprocket type:08A*10t

(U:mm)
