BC plastic roller track with 28mm dia.25mm width roller for flow rack

Product Description:

Production Description

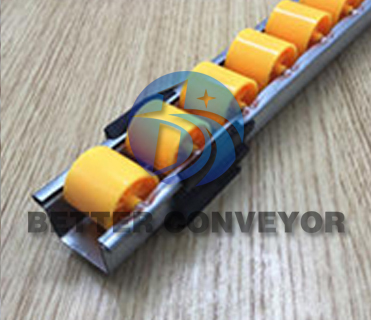

BC-5A-41 skate wheel conveyor
The advantage of Plastic roller tracks:
A. Mainly used in tranporting, storage system supporting products, can be used as slippery course,
protect column, guiding device.
B. Adopt the high quality thermoplastic plastic, has small friction coefficient, impact resistance, long life,
acid porrf alkaline, resistant to moisture wet, etc.
C. Usually in depth direction every 600mm to 800mm installed a root support beam to increase the stiffness.
D. Rolling performace good, the cost is low.

Product Name	BC-5A-41

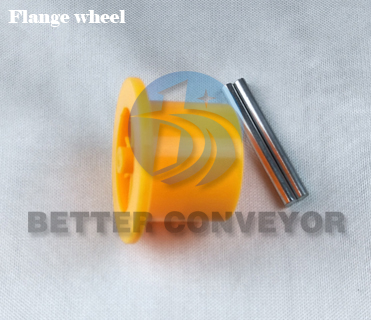

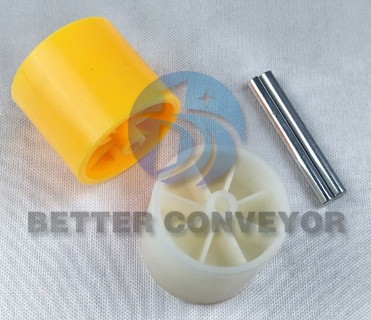

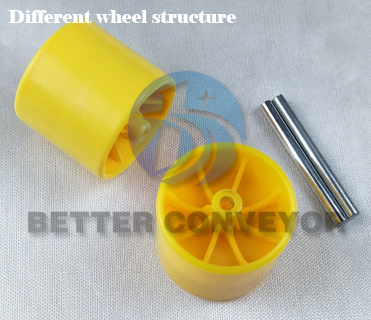

Wheel type	skate wheel or flange wheel
Wheel Material	ABS or PE
Wheel Size	OD28mm*W25mm
Frame Material	galvanized carbon steel
Frame Size	W41mm*H26mm
Pitch	33/35/45mm 30/28/22wheels/m
Load capacity	45kg/m

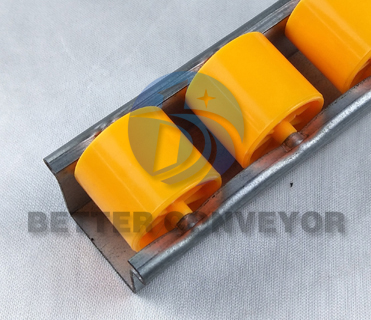

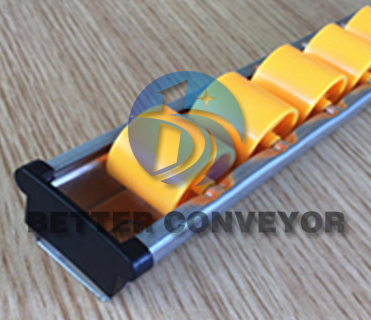

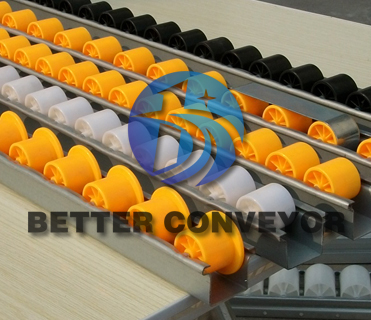

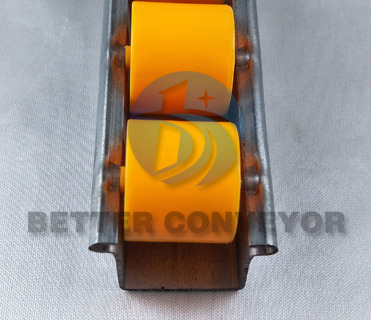

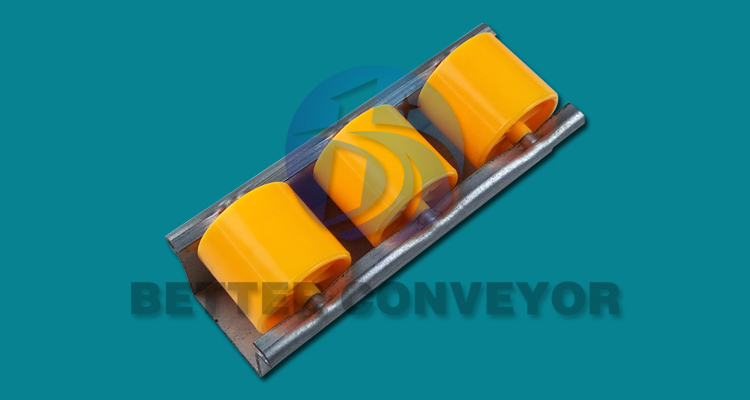

Products Show

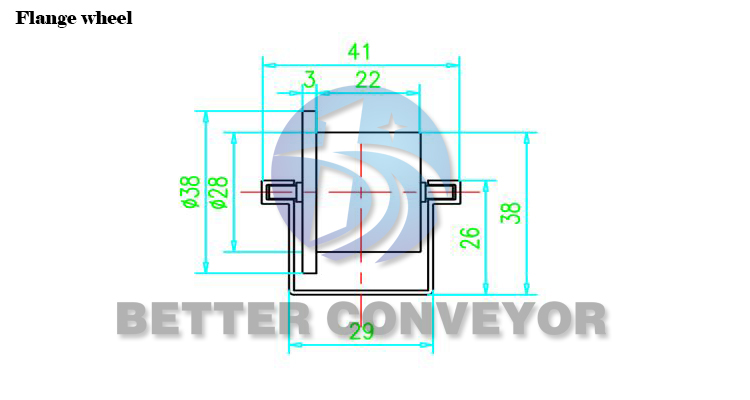

Bracket

Model	BC-5A-41	total height(H)	38mm
Wheel width(W)	25mm	wheel material	ABS or PE
Wheel diameter(D)	28mm	Frame material	galvanized carbon steel
Frame width(W1)	41mm	pitch	33/35/45mm 30/28/22wheels/m
Frame height(H1)	26mm	load capacity	45kg/m

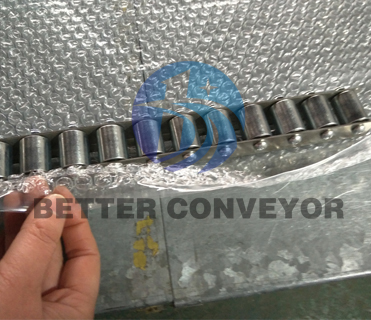

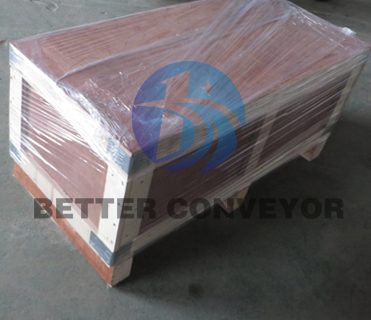

Packing & Delivery

wooden case with bubble roll
