BC roller track with 20mm dia.15mm width cutting wheel for conveyor

Product Description:

Production Description

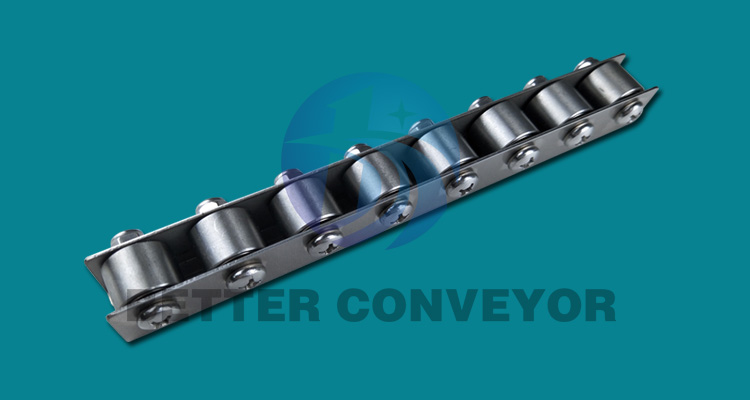

BW-2015BS-SUS-1000L-30P roller track
Wheel Conveyors or Skate Wheel Conveyors and are an alternative version of non-powered roller conveyors.
In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various wheel
patterns to configure conveyor lanes, either in horizontal push applications or on slight decline angles for gravity
flow solutions.
e.g.

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment

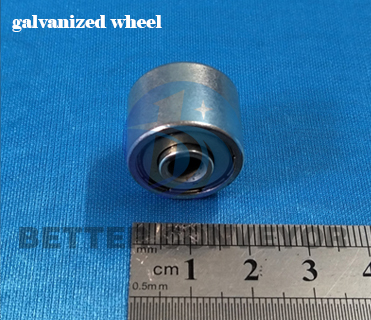

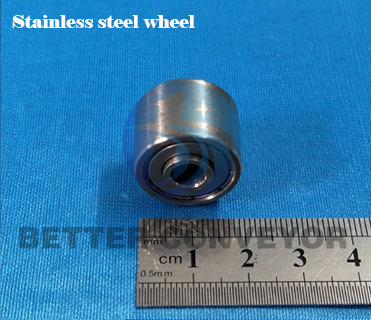

Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-2015BS-SUS-1000L-30P

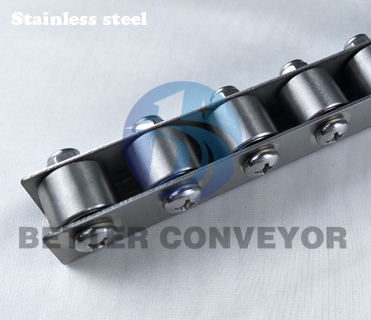

Wheel Material	carbon steel or stainless steel
Wheel Size	OD20mmW15mmd6mm

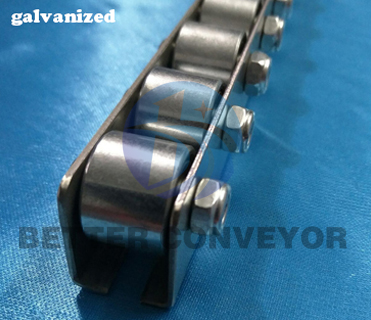

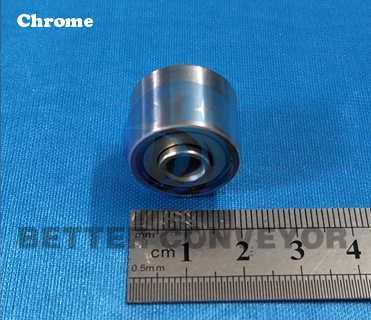

Wheel surface treatment	standard is galvanized,optional chromed,nickel,covered with Polyurethane

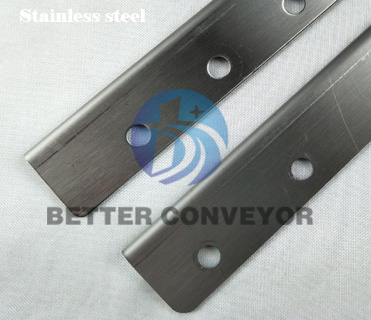

Frame Material	carbon steel or stainless steel
Frame Size	W20mm*H27mm

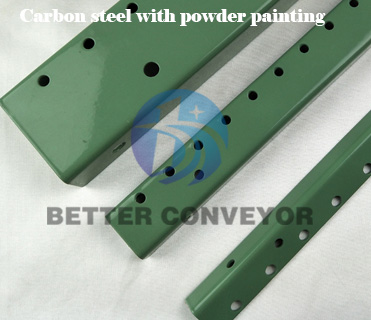

Frame surface treatment	powder painting

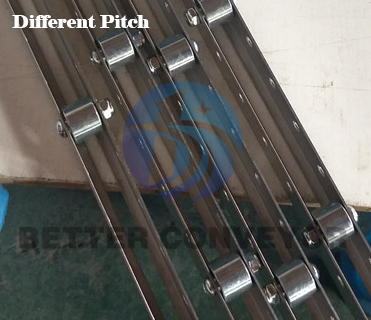

Pitch	25mm/30mm/35mm/50mm

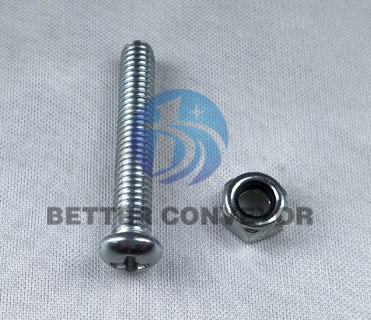

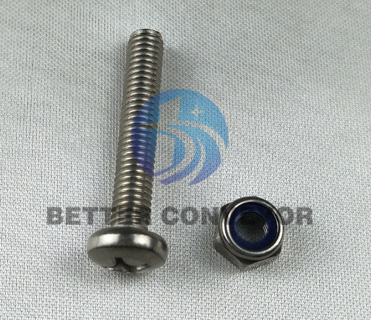

Thread	Pan head
Load capacity	30kg/pcs

Products Show

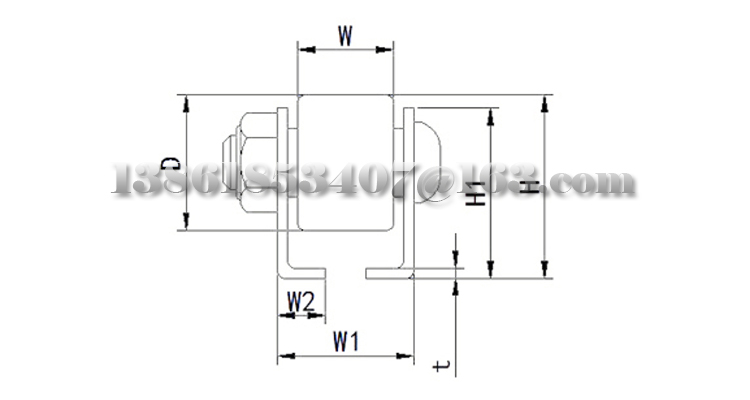

Model	BW-2015BS-CR-1000L-30P	Roller material	carbon steel or stainless steel
Roller diameter(D)	20mm	Frame material	carbon steel or stainless steel
Roller width(W)	15mm	Roller pitch	25mm/30mm/35mm/50mm
Frame width(W1)	20mm	Load capacity	30kg/pcs
Frame width(W2)	7mm	Conveyor length	1500mm
Frame high(H1)	25mm	Special design	Yes
Frame high(H)	27mm	Warranty	12 months
Thickness(t)	1.5mm

Packing & Delivery

wooden case with bubble roll
