BW-2025BS steel skate wheel conveyor
Product Description:
T

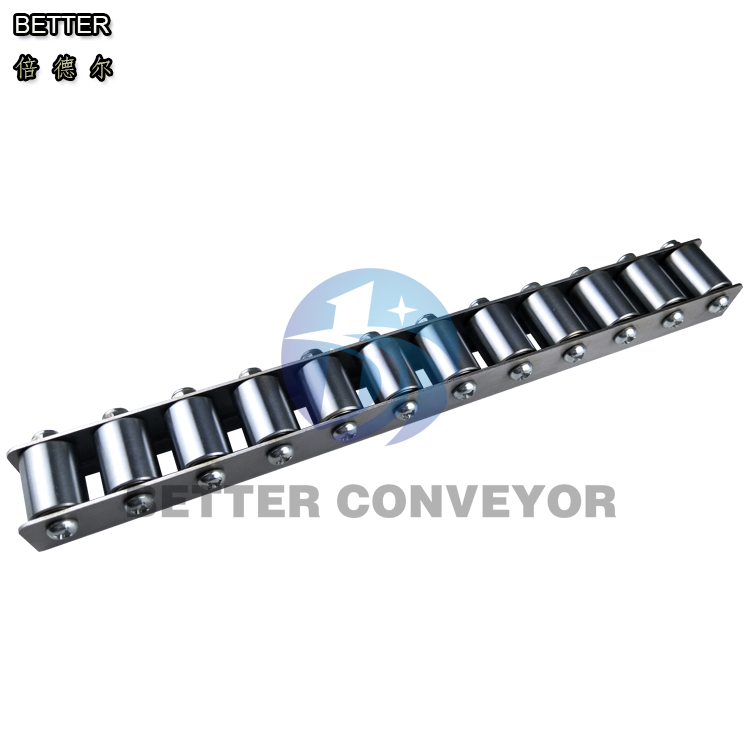

Wheel conveyor is made up with metal skate wheels,bolts,nuts,metal frames,which is used widely in todays' workshop,warehouse,shelf and the machine.
Cutting wheel is different from stamping wheel,which is produced similar as metal bearing,these wheels are moving fluently with less noise.
Model:BW-2025BS-1000L-25P
Wheel size:Φ20mm *W25mm;
middle axis:Φ6mm

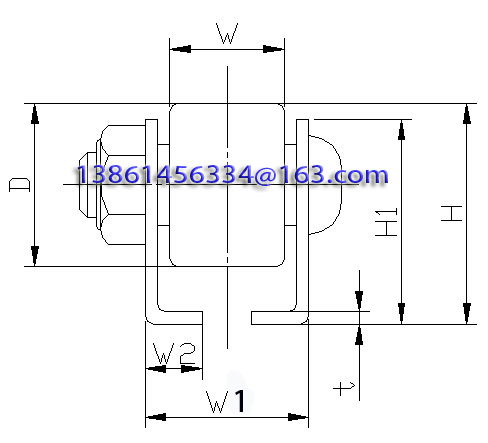

Conveyor size: 25H1*10W2*30W1*27H*1.5t
load capacity:35kg;
pitch:25mm、30mm、35mm;(ANY SIZE)
wheel type: cutting wheel;
Wheel conveyor is made up with metal skate wheels,bolts,nuts,metal frames,which is used widely in todays' workshop,warehouse,shelf and the machine.
Cutting wheel is different from stamping wheel,which is produced similar as metal bearing,these wheels are moving fluently with less noise.
Model:BW-2025BS-1000L-25P
Wheel size:Φ20mm *W25mm;
middle axis:Φ6mm
Conveyor size: 25H1*10W2*30W1*27H*1.5t
load capacity:35kg;
pitch:25mm、30mm、35mm;(ANY SIZE)
wheel type: cutting wheel;
