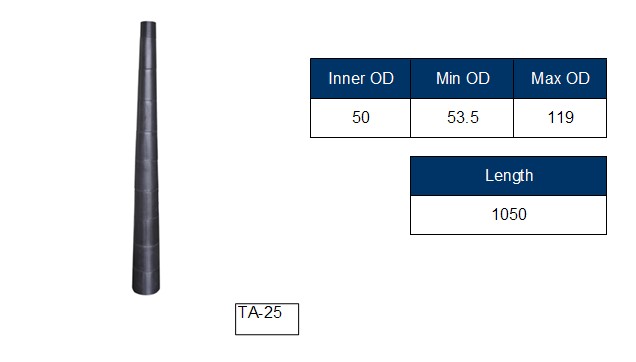

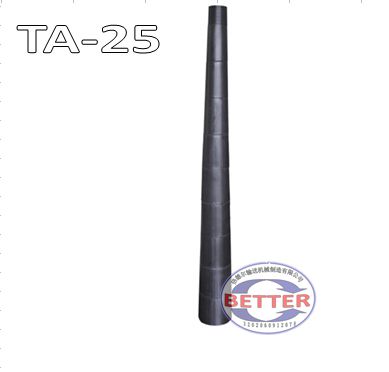

TA-25 Tapered roller sleeve
Product Description:
Model:TA-25
Name:Taper roller sleeve
>>details
1.there are two modules for these taper roller sleeve
2.material: 1st section to 10th section (PP),11th to 14th section (PA6)
3.unit section width100mm
4.old module details:inner hole diameter:50mm&50.8mm;max length:1450mm;color:black~new module details:inner hole diameter:50mm;max length:850mm;color:grey

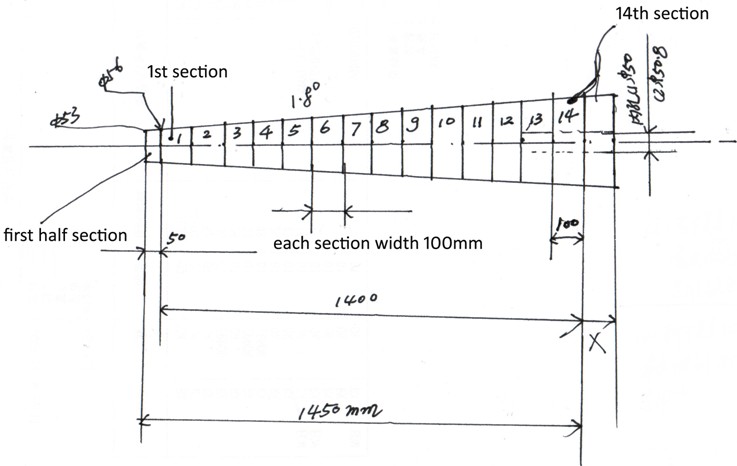

5.Technical drawing:
Professional-in conveyor and accessories!
Name:Taper roller sleeve
>>details
1.there are two modules for these taper roller sleeve
2.material: 1st section to 10th section (PP),11th to 14th section (PA6)
3.unit section width100mm
4.old module details:inner hole diameter:50mm&50.8mm;max length:1450mm;color:black~new module details:inner hole diameter:50mm;max length:850mm;color:grey
5.Technical drawing:
Professional-in conveyor and accessories!
