BC metal roller track with 19mm dia.30mm width nickel plating roller

Product Description:

Production Description

BW-1930BS-N-1000L-20P roller track
Roller tracks or roller rails are an alternative version of non-powered roller conveyors. In these conveyors,
a series of mini rollers are mounted to a variety of conveyor rail shapes and with various roller patterns to
configure conveyor lanes, either in horizontal push applications or on slight decline angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-1930BS-N-1000L-20P
Roller Material	carbon steel

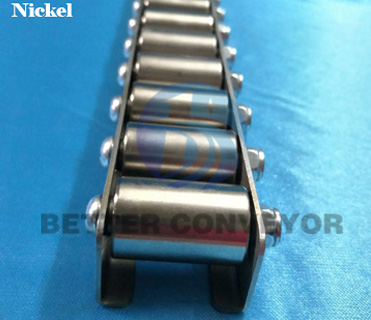

Roller surface treatment	standard is Nickel
Roller Size	OD19mmW30mmd6mm

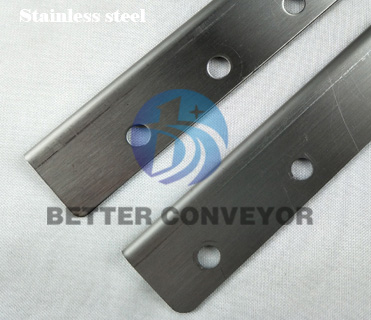

Frame Material	carbon streel or stainless steel

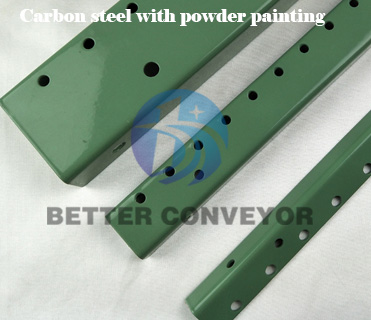

Frame surface	powder painting
Frame Size	W35mm*H27.5mm

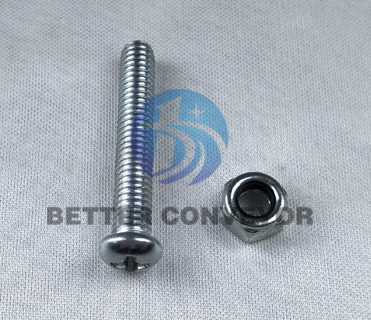

Thread	Pan Head
Pitch	25mm/30mm/35mm
Load capacity	30kg/pcs

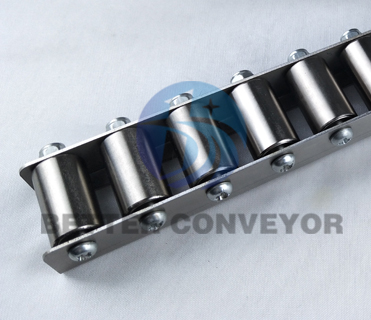

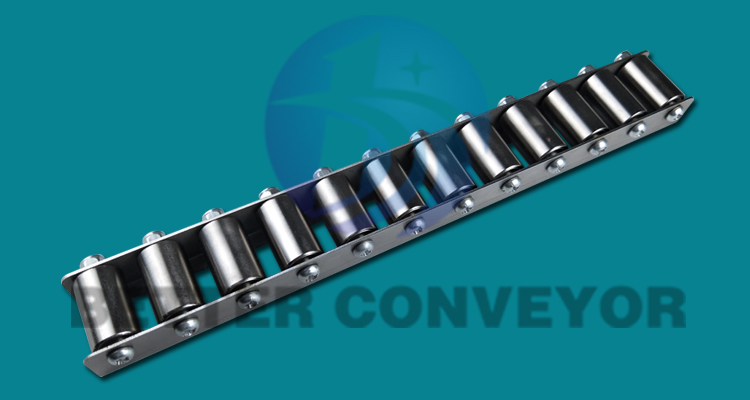

Products Show

Model	BW-1930BS-1000L-25P	Roller material	carbon steel
Roller diameter(D)	19mm	Frame material	carbon steel or stainless steel
Roller width(W)	30mm	Roller pitch	25mm/30mm/35mm
Frame width(W1)	35mm	Load capacity	30KG/pcs
Frame width(W2)	7mm	Conveyor length	less than 2m
Frame high(H1)	25mm	Special design	Yse
Frame high(H)	27.5mm	Warranty	12month
Bending thickness(t)	1.5mm

Packing & Delivery

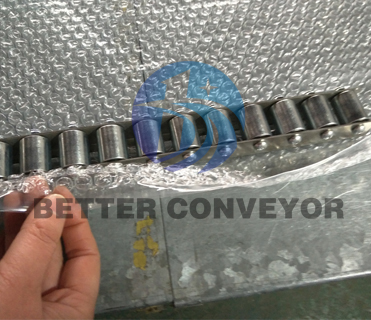

wooden case with bubble roll
