BC plastic skate wheel conveyor with 28mm dia.25mm width skate wheel,pallet roller track with flange wheel for flow rail

Product Description:

Production Description

BC-6A-42 skate roller tracks
The advantage of Plastic roller tracks:
A. Mainly used in tranporting, storage system supporting products, can be used as slippery course,
protect column, guiding device.
B. Adopt the high quality thermoplastic plastic, has small friction coefficient, impact resistance, long life, acid porrf alkaline, resistant to moisture wet, etc.
C. Usually in depth direction every 600mm to 800mm installed a root support beam to increase the stiffness.
D. Rolling performace good, the cost is low.

Product Name	BC-6A-42
Wheel type	skate wheel or flange wheel
Wheel Material	ABS
Wheel Size	OD28mm*W25mm
Frame Material	Aluminum Alloy
Frame Size	W42mm*H35mm
Pitch	30/45/60mm 33/22/16wheels/m
Load capacity	80kg/m

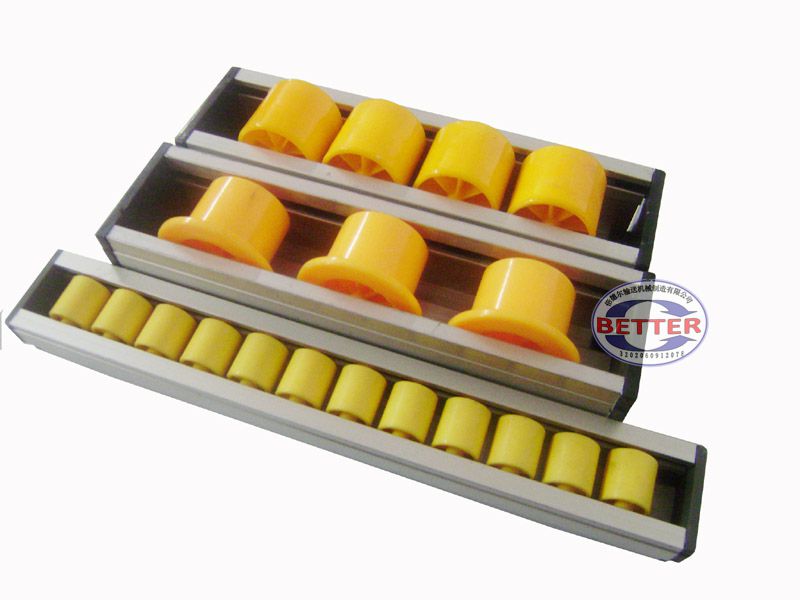

Products Show

Model	BC-6A-42	total height(H)	39mm
Wheel width(W)	25mm	wheel material	ABS
Wheel diameter(D)	28mm	Frame material	Aluminum Alloy
Frame width(W1)	42mm	pitch	30/45/60mm 33/22/16wheels/m
Frame height(H1)	35mm	load capacity	80kg/m

Packing & Delivery

wooden case with bubble roll
