BC plastic flow rail with 33mm dia.22.5mm width wheel for rack system

Product Description:

Production Description

BC-4A-40 PE skate roller tracks
The advantage of Plastic roller tracks:
A. Mainly used in tranporting, storage system supporting products, can be used as slippery course,
protect column, guiding device.
B. Adopt the high quality thermoplastic plastic, has small friction coefficient, impact resistance, long life, acid porrf alkaline, resistant to moisture wet, etc.
C. Usually in depth direction every 600mm to 800mm installed a root support beam to increase the stiffness.
D. Rolling performace good, the cost is low.

Product Name	BC-4A-40
Wheel Material	ABS or PE
Wheel Size	OD33mmW22.5mm or 35mm22.5mm
Frame Material	galvanized carbon steel
Frame Size	W40mm*H33mm
Pitch	36mm 28wheels/m
Load capacity	100kg/m

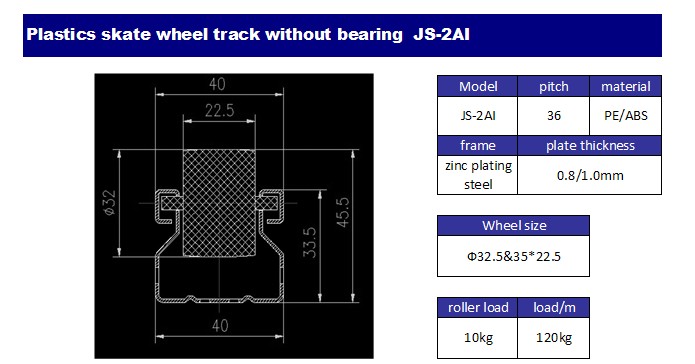

Products Show

Model	BC-4A-40	total height(H)	45mm
Wheel width(W)	22.5mm	wheel material	ABS or PE
Wheel diameter(D)	33mm	Frame material	galvanized carbon steel
Frame width(W1)	40mm	pitch	36mm 28wheels/m
Frame height(H1)	33mm	load capacity	100kg/m

Packing & Delivery

wooden case with bubble roller
