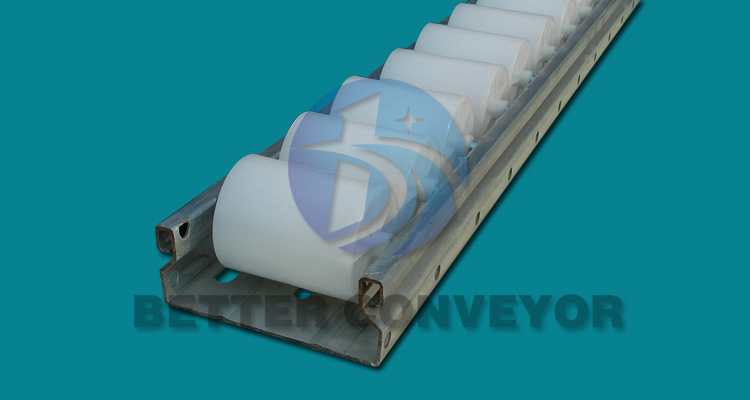

BC heavy duty plastic roller track,plastic flow rail,small roller conveyor with 45mm dia. 55mm width rollers

Product Description:

Production Description

BC-10A-85 plastic roller tracks
The advantage of Plastic roller tracks:
A. Mainly used in tranporting, storage system supporting products, can be used as slippery course,
protect column, guiding device.
B. Adopt the high quality thermoplastic plastic, has small friction coefficient, impact resistance, long life, acid porrf alkaline, resistant to moisture wet, etc.
C. Usually in depth direction every 600mm to 800mm installed a root support beam to increase the stiffness.
D. Rolling performace good, the cost is low.

Product Name	BC-10A-85
Wheel Material	PE
Wheel Size	OD45mm*W50mm
Frame Material	galvanized carbon steel
Frame Size	W85mm*H33mm
Pitch	50mm 20wheels/m
Load capacity	800kg/m

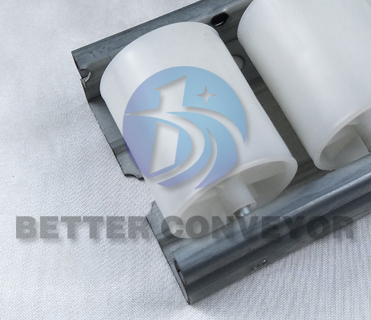

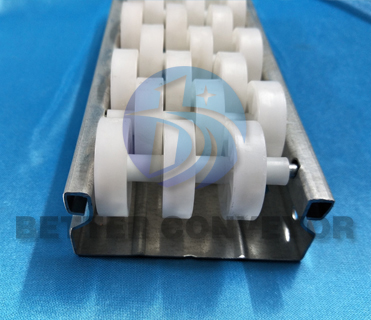

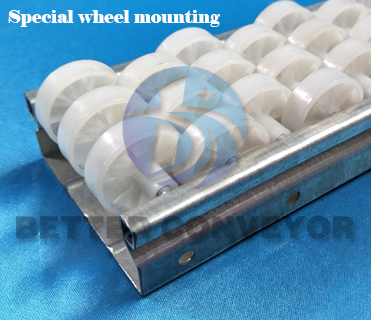

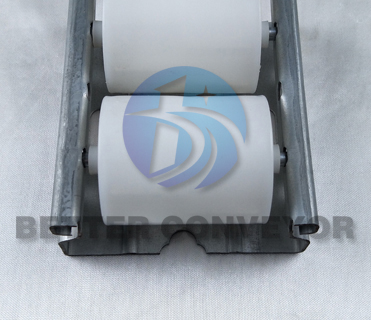

Products Show

Model	BC-10A-85	total height(H)	50mm
Wheel width(W)	50mm	wheel material	PE
Wheel diameter(D)	45mm	Frame material	galvanized carbon steel
Frame width(W1)	85mm	pitch	50mm 20wheels/m
Frame height(H1)	33mm	load capacity	800kg/m

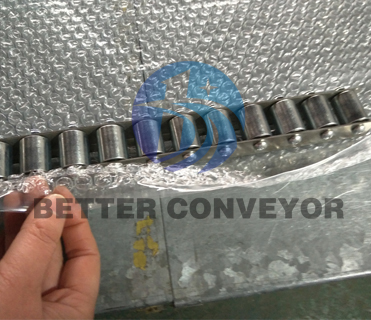

Packing & Delivery

wooden case with bubble roll
