BC roller conveyor with 20mm dia.25mm width cutting wheel for conveyor

Product Description:

Production Description

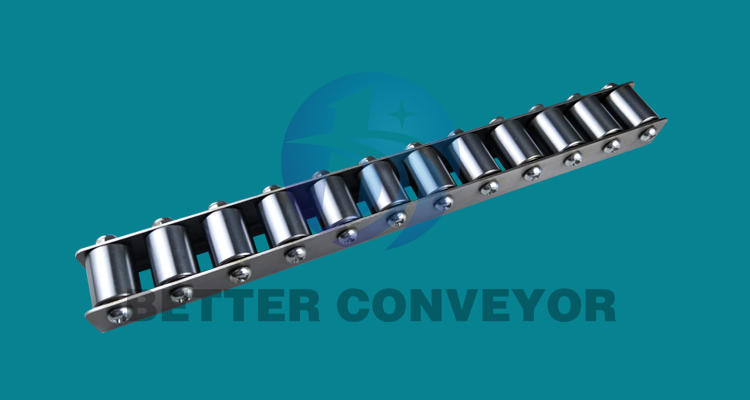

BW-2025BS-CR-1000L-25P roller track
Roller tracks or roller rails are an alternative version of non-powered roller conveyors.
In these conveyors, a series of mini rollers are mounted to a variety of conveyor rail
shapes and with various roller patterns to configure conveyor lanes, either in horizontal
push applications or on slight decline angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment

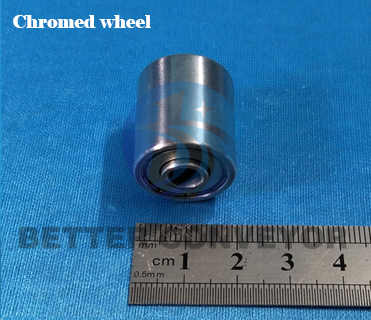

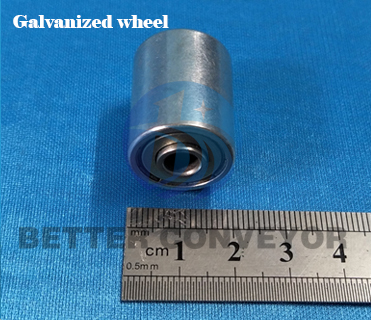

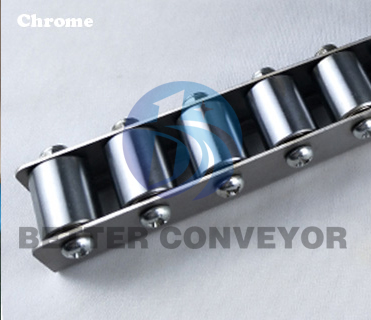

Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-2025BS-CR-1000L-25P roller track

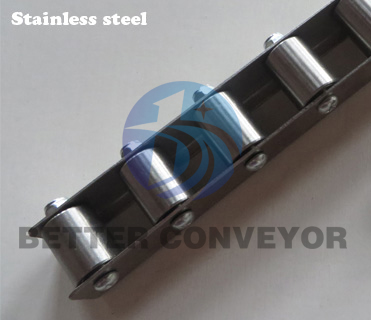

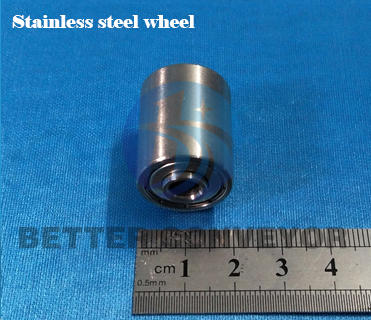

Wheel Material	carbon steel or stainless steel
Wheel Size	OD20mmW25mmd6mm

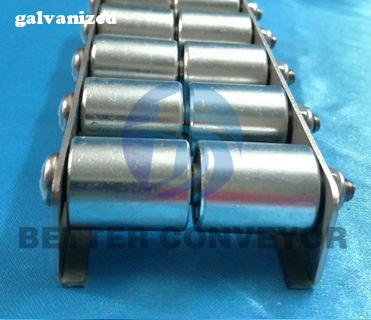

Wheel surface treatment	standard is galvanized, optional chromed,nickel

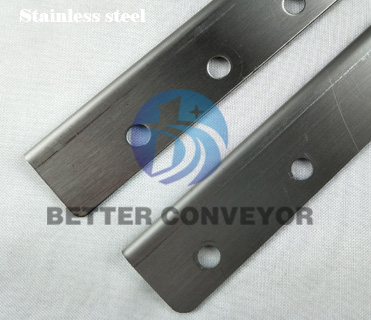

Frame Material	carbon steel or stainless steel
Frame Size	W30mm*H27mm

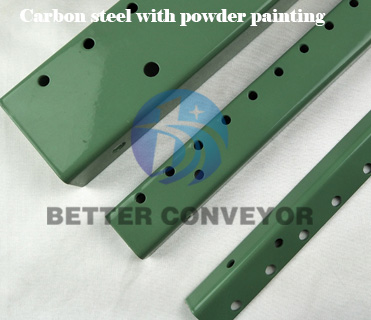

Frame surface treatment	powder painting

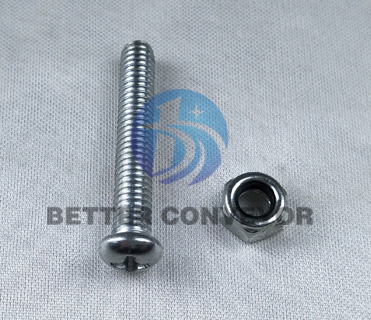

Thread	Pan head
Pitch	25mm/30mm/35mm/50mm
Load capacity	35kg/pcs

Products Show

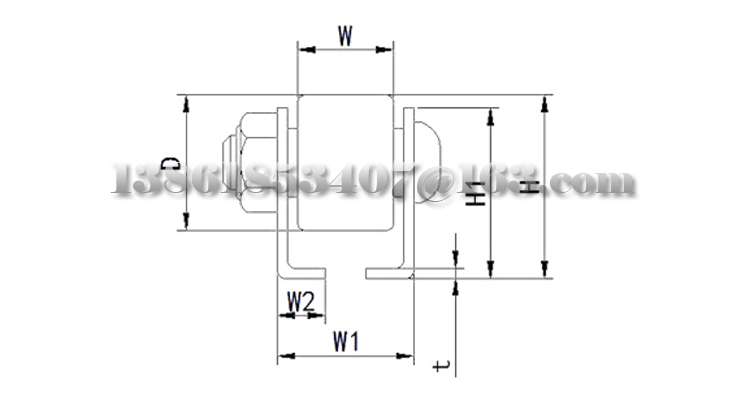

Model	BW-2025BS-CR	Roller material	carbon or stainless
Roller diameter(D)	20mm	Frame material	carbon steel or stainless steel
Roller width(W)	25mm	Roller pitch	25mm/30mm/35mm/50mm
Frame width(W1)	30mm	Load capacity	35kg/pcs
Frame width(W2)	7mm	Conveyor length	1500mm
Frame high(H1)	25mm	Special design	Yes
Frame high(H)	27mm	Warranty	12 months
Thickness(t)	1.5mm

Packing & Delivery

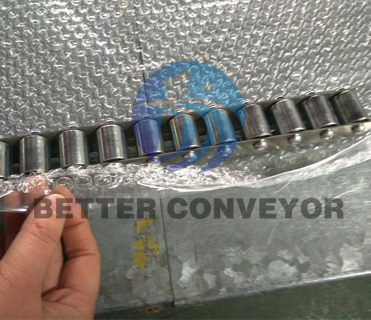

wooden case with bubble roll
