BC metal flow rail with 25mm dia.23mm width roller

Product Description:

Production Description

BW-2523BS-1000L-30P roller track
Roller tracks or roller rails are an alternative version of non-powered roller conveyors.
In these conveyors, a series of mini rollers are mounted to a variety of conveyor rail
shapes and with various roller patterns to configure conveyor lanes, either in horizontal
push applications or on slight decline angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-2523BS-1000L-30P

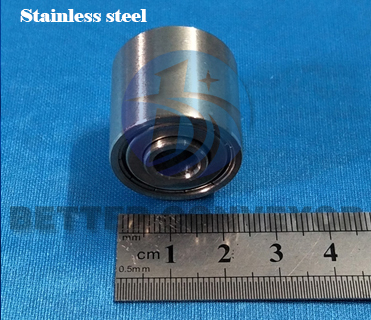

Roller Material	carbon steel or stainless steel

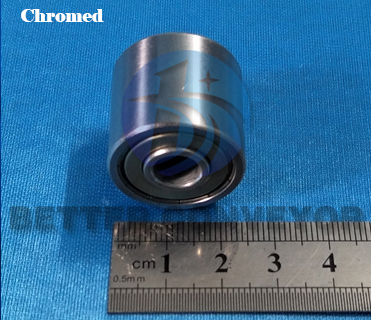

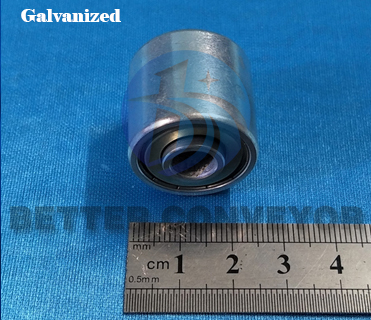

Roller surface treatment	standard is galvanized,optional chromed
Roller Size	OD25mmW23mmd8mm

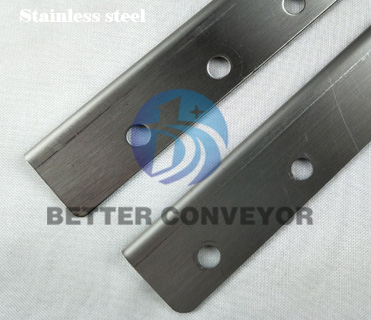

Frame Material	carbon streel or stainless steel

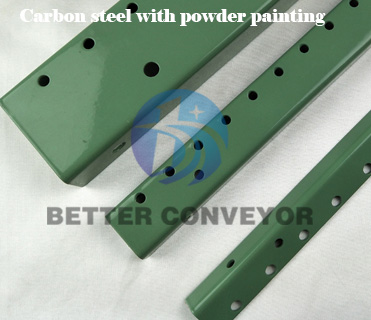

Frame surface treatment	powder painting
Frame Size	W28.6mm*H29.5mm
Thread	Pan Head
Pitch	30mm/35mm/50mm
Load capacity	50kg/pcs

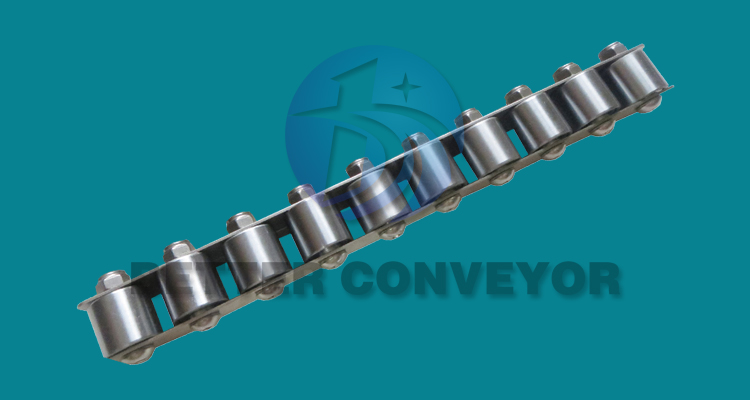

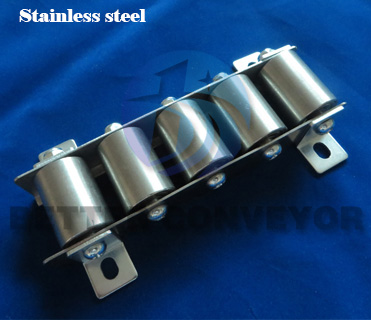

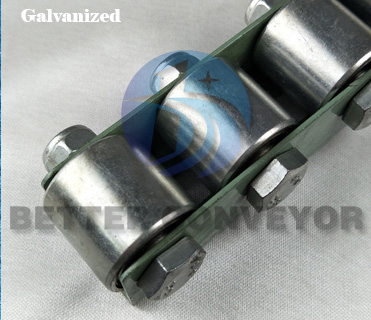

Products Show

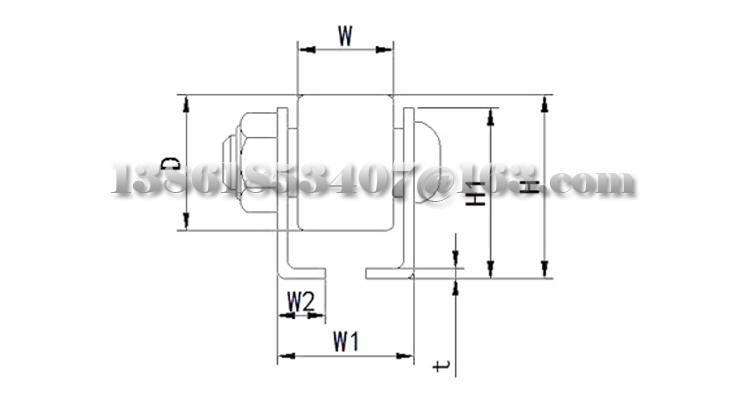

Model	BW-2523BS-1000L-30P	Roller material	carbon steel or stainless steel
Roller diameter(D)	25mm	Frame material	carbon steel or stainless steel
Roller width(W)	23mm	Roller pitch	30mm/35mm/50mm
Frame width(W1)	28.6mm	Load capacity	50KG/pcs
Frame width(W2)	9mm	Conveyor length	less than 2m
Frame high(H1)	25mm	Special design	Yse
Frame high(H)	29.5mm	Warranty	12month
Bending thickness(t)	2mm

Packing & Delivery

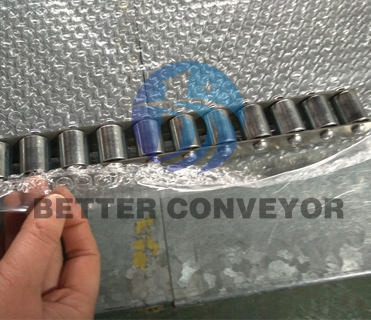

wooden case with bubble roll
