    BC skate wheel conveyor with 36mm dia.9mm width wheels
      BC skate wheel conveyor with 36mm dia.9mm width wheels

    Product Description:

    Production Description

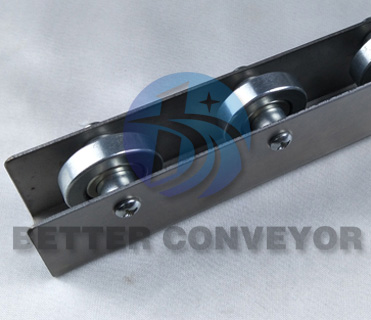

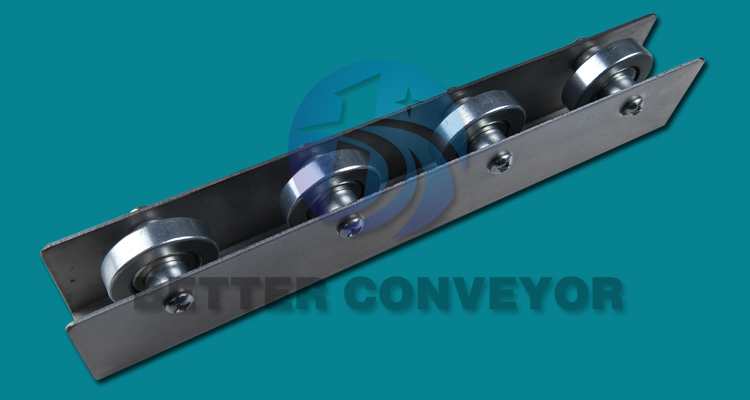

    BW-36BS-1000L-50P wheel conveyor
    Wheel Conveyors or Skate Wheel Conveyors are an alternative version of non-powered roller conveyors.
    In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various
    wheel patterns to configure conveyor lanes, either in horizontal push applications or on slight decline
    angles for gravity flow solutions.
    e.g:




    BW - 2015 BS CR - 1000L - 30P
      A        B    C    D        E         F


    A:THe structure of frame
    B:Wheel diameter+wheel width
    C:tpyes of wheel
    BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
    D:Wheel surface treatment
    Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
    E:roller track length
    F:Pitch(distance between tow wheel)

    Product Name
    BW-36BS-1000L-50P
    Roller Material
    carbon steel
    Roller surface treatment
    standard is galvanized,optional chromed

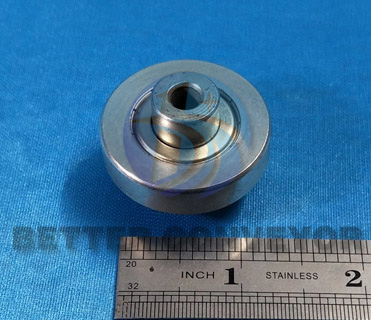

    Roller Size

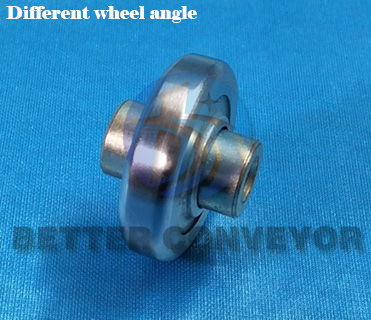

    OD36mm*W9mm*d6mm
    Frame Material

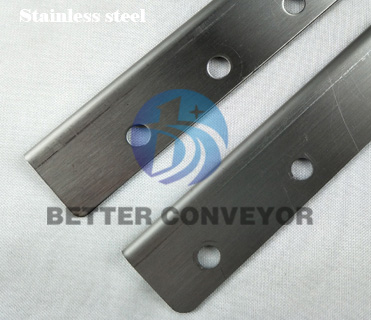

    carbon streel or stainless steel

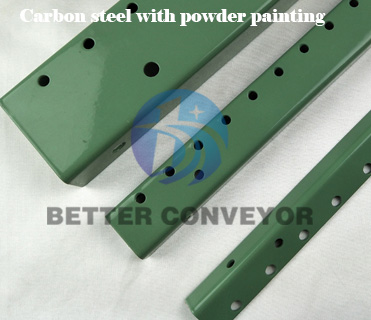

    Frame surface treatment
    powder painting
    Frame Size
    W28.6mm*H51mm

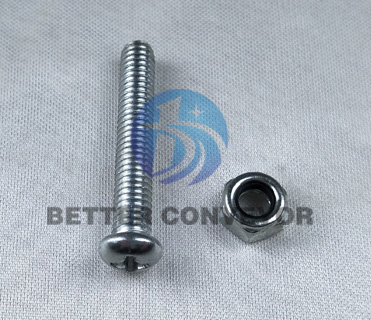

    Thread
    Pan Head
    Pitch
    50mm/75mm/100mm
    Load capacity
    40kg/pcs

    Products Show

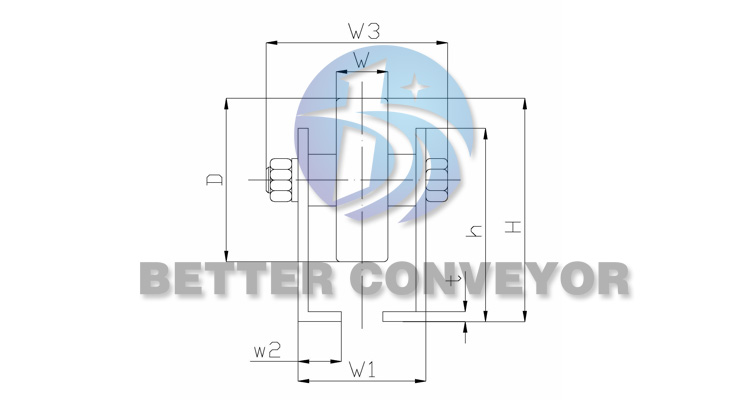

    Model
    BW-36BS-1000L-50P
    Roller material
    carbon steel
    Roller diameter(D)
    36mm
    Frame material
    carbon steel or stainless steel
    Roller width(W)
    9mm
    Roller pitch
    50mm/75mm/100mm
    Frame width(W1)
    28.6mm
    Load capacity
    40KG/pcs
    Frame width(W2)
    10mm
    Conveyor length
    less than 2m
    Frame high(H1)
    45mm
    Special design
    Yse
    Frame high(H)
    51mm
    Warranty
    12month
    Bending thickness(t)
    1.5mm

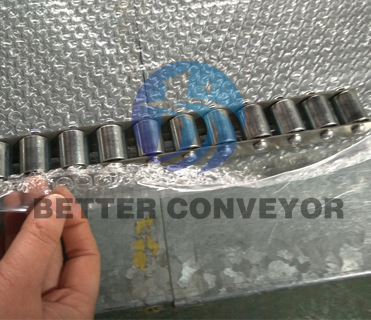

    Packing & Delivery

    wooden case with bubble roller
