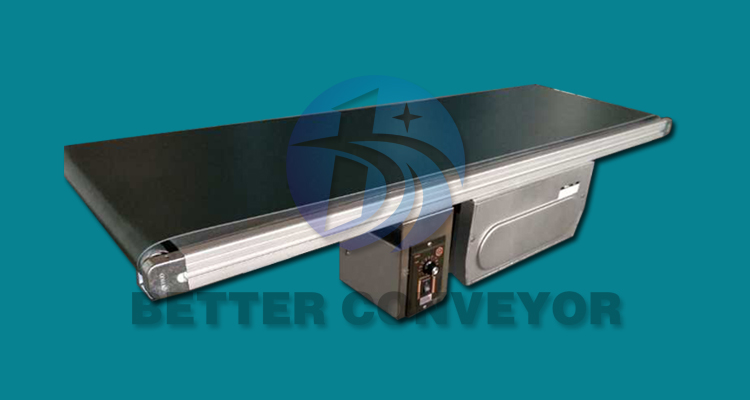

BC low profile slider bed belt conveyor with 300mm width,1000mm length belt,small belt conveyor for conveyor system

Product Description:

Production Description

BL-34S1-300W-3000L-750H-200W light duty belt conveyor
BC-34 S1's most economical slider bed belt conveyor. It provides a reliable way of transporting products
in assembly, sorting, testing and packaging applications. These slider bed belt conveyors are the most
popular of all powered conveyors due to their simple, economical design.

BL-34S1-300W-3000L-750H-200W
A B C D E

A.BL-34GI means GI model with middle guide
B.300W means effective belt width
C.3000L means belt conveyor working length
D.705H means conveyor height
E.200W means conveyor power

Product Name	BL-34S1-300W-3000L-750H-200W

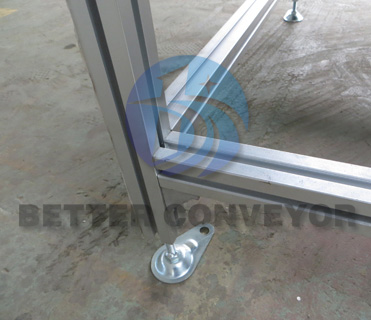

Frame Material	Aluminum Alloy
Belt Width	100~600mm
conveyor length	500~8000mm
power	200W

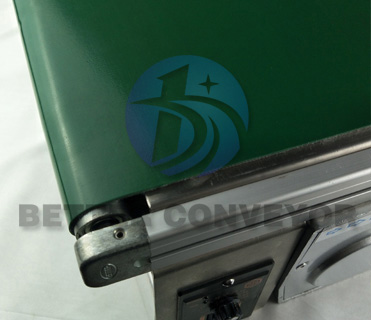

Belt Material	standard is PVC,optional TPU,PE,TPEE,PVK
Voltage	AC 110V/220V

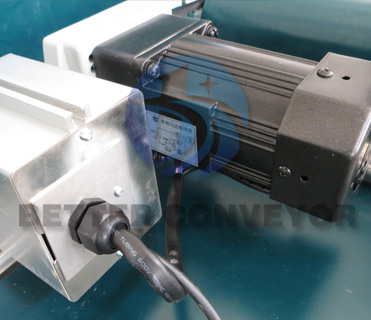

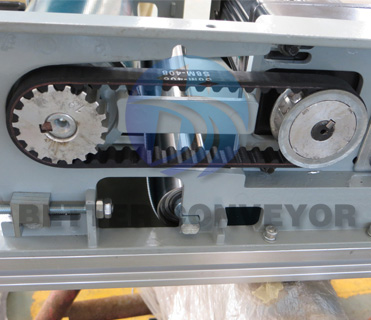

Drive	Standard is an center drive
