BC skate wheel conveyor with special mounting

Product Description:

Production Description
BW-36WW-1000L-30P wheel conveyor
Wheel Conveyors or Skate Wheel Conveyors are an alternative version of non-powered roller conveyors. In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various wheel patterns to configure conveyor lanes, either in horizontal push applications or on slight decline angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-36WW-1000L-30P
Roller Material	carbon steel
Roller surface treatment	standard is galvanized optional chromed

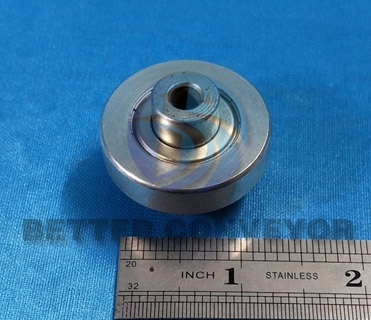

Roller Size	OD36mmW9mmd8mm
Frame Material	carbon streel or stainless steel
Frame surface treatment	powder painting
Frame Size	W108mm*H45mm
Thread	Socket Cap
Pitch	30mm/40mm/50mm
Load capacity	40kg/pcs

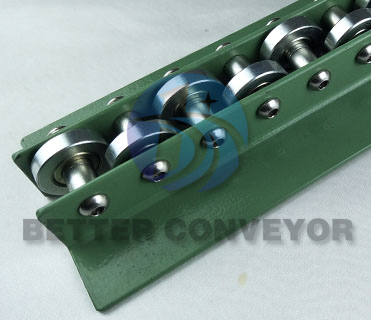

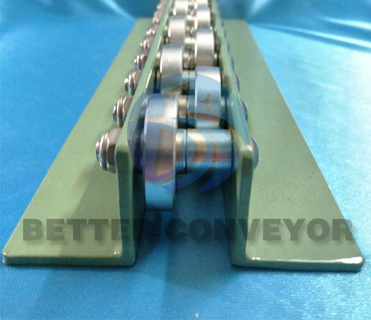

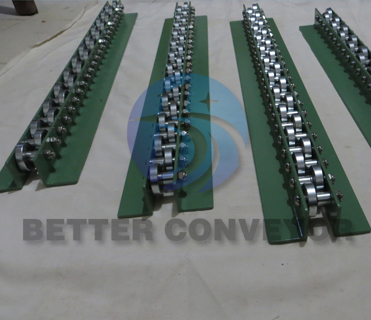

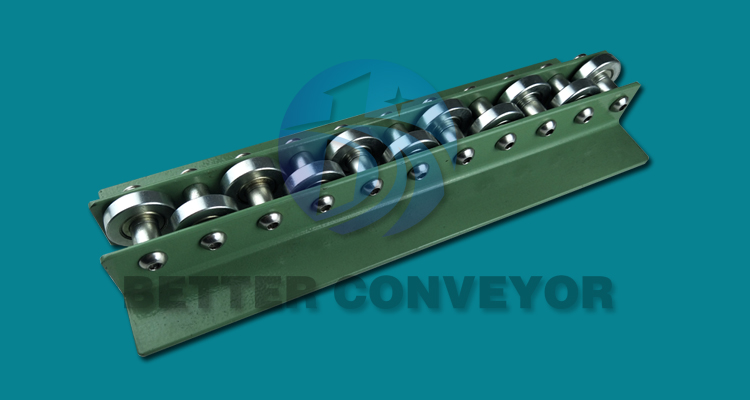

Products Show

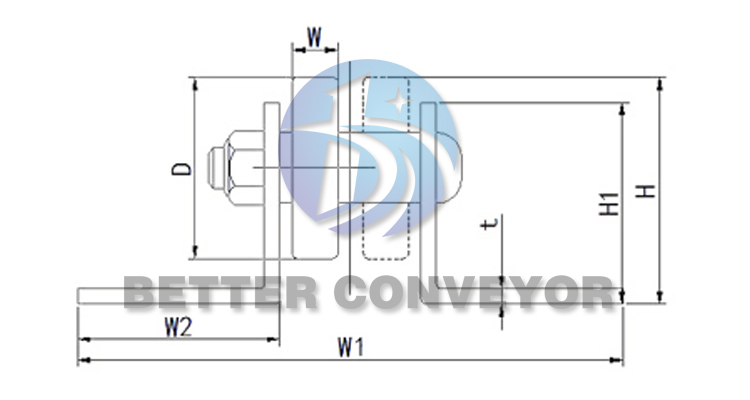

Model	BW-36WW-1000L-30P	Roller material	carbon steel
Roller diameter(D)	36mm	Frame material	carbon steel or stainless steel
Roller width(W)	9mm	Roller pitch	30mm/40mm/50mm
Frame width(W1)	108mm	Load capacity	40KG/pcs
Frame width(W2)	40mm	Conveyor length	less than 2m
Frame high(H1)	40mm	Special design	Yse
Frame high(H)	45mm	Warranty	12month
Bending thickness(t)	2mm

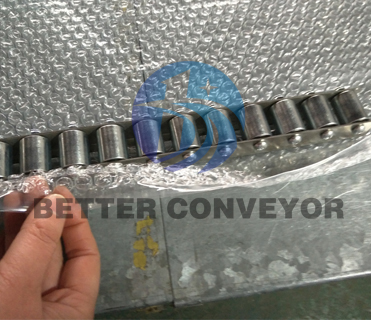

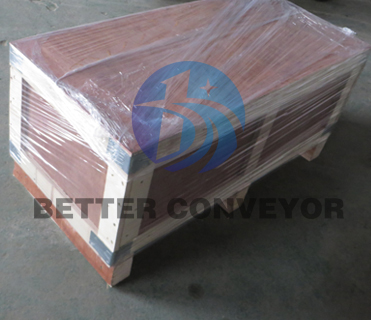

Packing & Delivery
wooden case with bubble roll
