BC wheel conveyor with 30mm dia.9mm width wheels,skate wheel covered with Polyurethane

Product Description:

Production Description

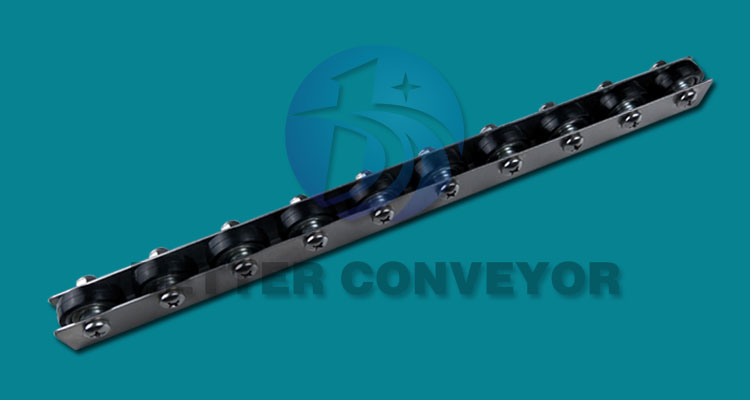

BW-3009BS-RB-1000L-75P wheel conveyor
Wheel Conveyors or Skate Wheel Conveyors are an alternative version of non-powered roller conveyors.
In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various
wheel patterns to configure conveyor lanes, either in horizontal push applications or on slight decline
angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-3009BS-RB-1000L-75P
Roller Material	carbon steel

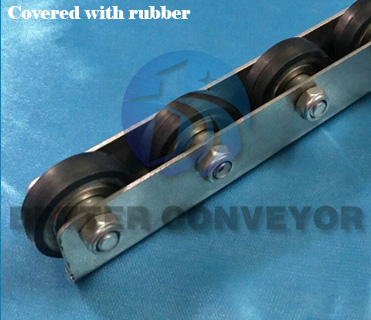

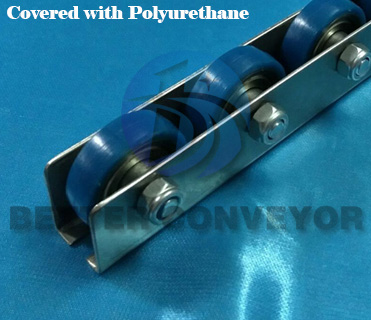

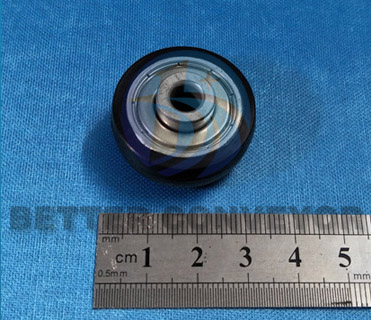

Roller surface treatment	covered with rubber,Polyurethane

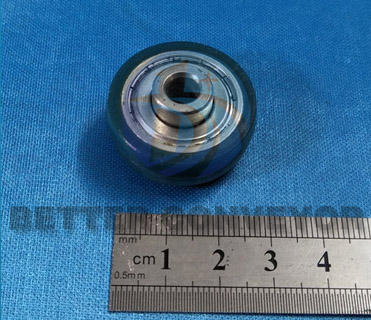

Roller Size	OD30mmW9mmd6mm

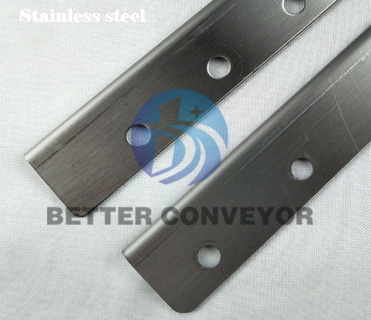

Frame Material	carbon steel or stainless steel

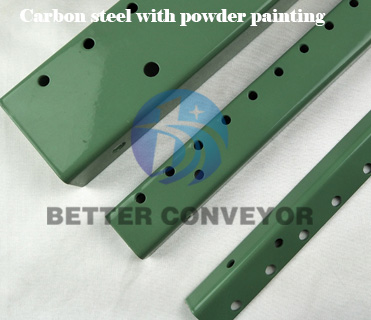

Frame surface treatment	powder painting
Frame Size	W19.1mm*H33mm
Thread	Pan Head
Pitch	25mm/30mm/35mm/50mm
Load capacity	25kg/pcs

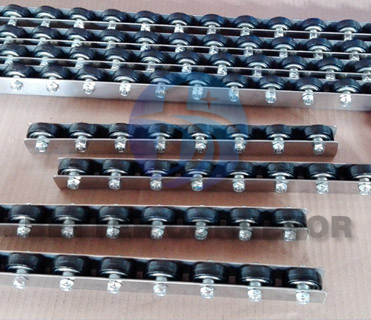

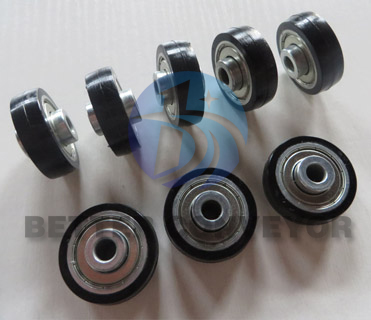

Products Show

Model	BW-3009BS-1000L-35P	Roller material	carbon steel
Roller diameter(D)	30mm	Frame material	carbon steel or stainless steel
Roller width(W)	9mm	Roller pitch	25mm/30mm/35mm/50mm
Frame width(W1)	19.1mm	Load capacity	25KG/pcs
Frame width(W2)	7mm	Conveyor length	less than 2m
Frame high(H1)	25mm	Special design	Yse
Frame high(H)	33mm	Warranty	12month
Bending thickness(t)	1.5mm

Packing & Delivery

wooden case with bubble roll
