BC plastic wheel rails with 38mm dia.24mm width wheel

Product Description:

Production Description

BW-3824PS-1000L-50P wheel conveyor
Wheel Conveyors or Skate Wheel Conveyors are an alternative version of non-powered roller conveyors.
In these conveyors, a series of wheels are mounted to a variety of conveyor rail shapes and with various
wheel patterns to configure conveyor lanes, either in horizontal push applications or on slight decline
angles for gravity flow solutions.
e.g:

BW - 2015 BS CR - 1000L - 30P
A B C D E F

A:THe structure of frame
B:Wheel diameter+wheel width
C:tpyes of wheel
BS-cutting wheel ,TS-pressed wheel ,RB-rubber coated,PS-resin wheel
D:Wheel surface treatment
Standard is galvanized,CR-chromed,N-nickel,SUS-stainless steel
E:roller track length
F:Pitch(distance between tow wheel)

Product Name	BW-3824PS-1000L-50P

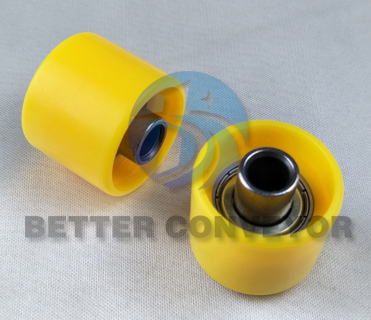

Wheel Material	ABS

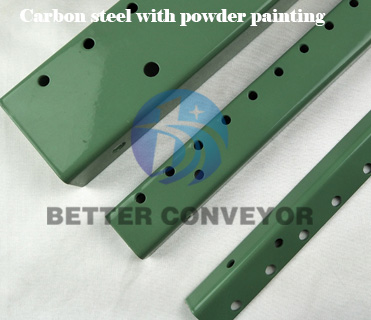

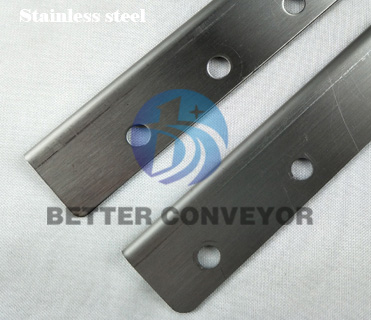

Frame Material	carbon steel or stainless steel
Wheel Size	OD38mmW24mmd8mm*L29mm
Frame Size	W32.5mm*H52mm
Wheel Bearing	standard is 608 bearing

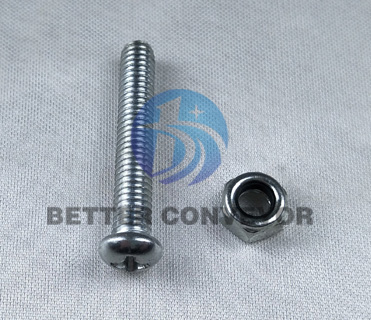

Thread	Pan head
Pitch	50mm/70mm
conveyor length	2000mm
Load capacity	40kg/pcs

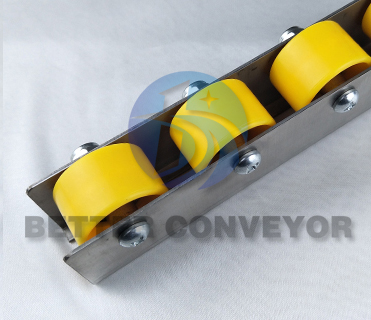

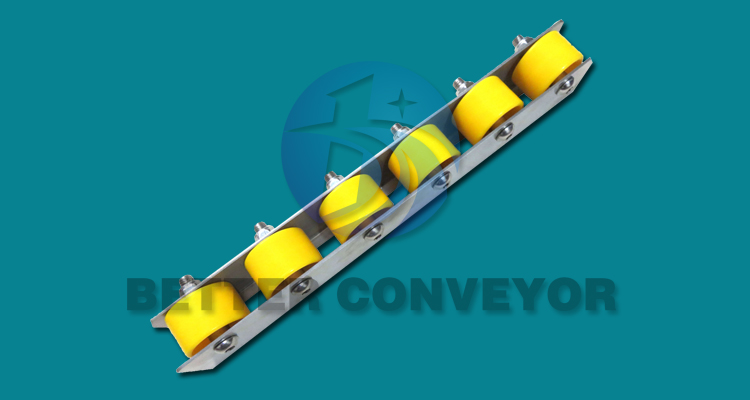

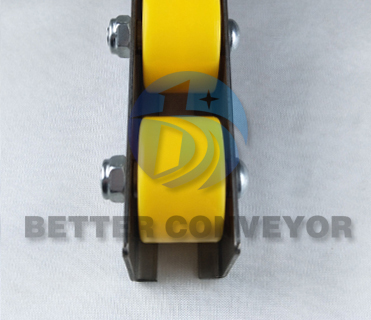

Products Show

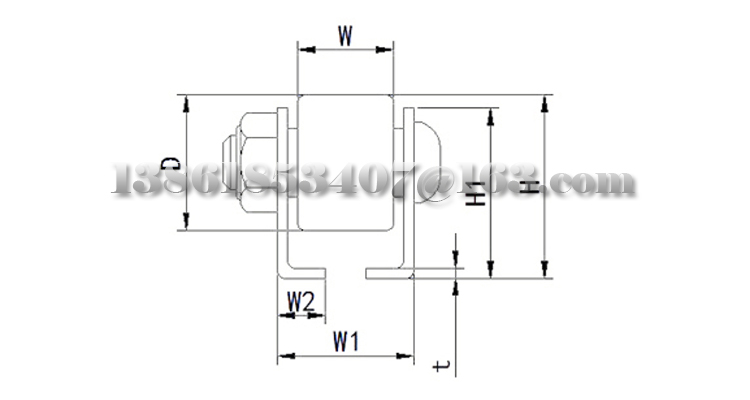

Model	BW-3824PS-1000L-50P	Wheel material	ABS
Roller diameter(D)	38mm	Frame material	carbon steel or stainless steel
Roller width(W)	24mm	Roller pitch	50mm/70mm
Frame width(W1)	32.5mm	Load capacity	40KG/pcs
Frame width(W2)	10mm	Conveyor length	2000mm
Frame high(H1)	45mm	Special design	Yes
Frame high(H2)	52mm	Warranty	12 months
Thickness(t)	2.0mm

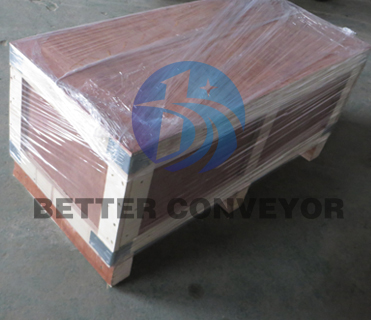

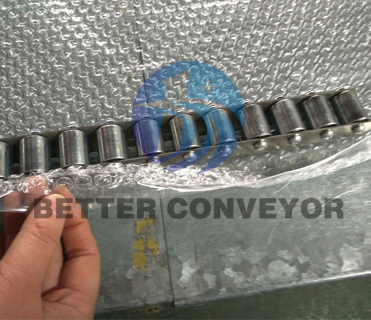

Packing & Delivery
